    Login Safe Protector Gateway BLE for detection of TAG readings of contacts on distancing

    €199.00
    Vat 15

    Login Safe Gateway BLE for detection of TAG readings on contacts in the distancing of workers with the Protector system.

    As soon as it detects a tag in its coverage areas, the gateway downloads the data into the log and transmits it to a basic reception middleware provided by ABD, or to a customized software that will be developed by the Customer's IT department using our libraries.

    Quantity
    prodotto prenotabile

    Compare
      Secure payments with PayPal or credit cards.

    You can pay with PayPal, credit cards and bank transfer.

      Delivery to EU from € 19,90

    Express shipments by the best couriers with tracking service.

      Return policy 7 days for business users, 14 days for consumers

    Free of charge replacement of products defective on arrival.

    Login Safe Gateway BLE for detection of TAG readings on contacts in the distancing of workers with the Protector system.

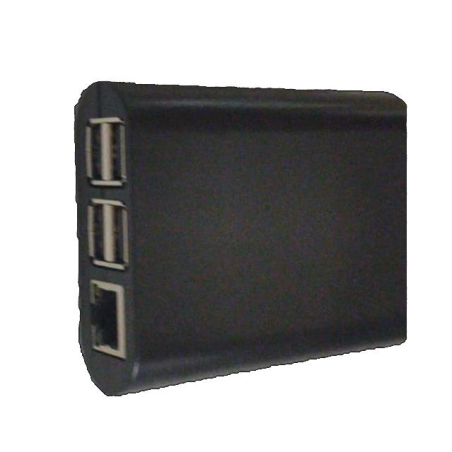

    Our Ethernet-WiFi Gateways are based on Raspberry technology with Shield and proprietary software.

    The Gateways with the updated SW for the automatic management of data download are available in the following versions:

    - RPI WiFi gateway
    - WiFi+Ethernet RPI/E gateway
    - Power supply 220V - 5V/3A

    All Gateway versions can be bodied for OUTDOOR use (IP65) on request.

    The Gateways can be supplied including environmental, air quality and particulate matter (PM2.5, PM10) sensors on request.

    The Gateway will be placed in strategic business areas, such as refreshment areas, access control points, changing rooms.

    As soon as it detects a tag in its coverage areas, the gateway downloads the data into the log and transmits it to a basic reception middleware provided by ABD, or to a customized software that will be developed by the Customer's IT department relying on our libraries.

    Sending logs to remote server.

    To transfer the log data to the server you can use your Smartphone with the MakeApp (at least for testing) or our Gateway. In both cases there is no need to do any special operation.

    By launching the MakeApp and selecting the device of interest, the application checks if there are data in memory and, if there are any, provides, by pressing the send button (or leaving it open if the background scan is not set - from the setup menu with the three vertical points at the top right) to forward them after an hour automatically with an HTTP post to the preset address and saving them each in its own space defined with the MAC of the device of interest.


    DSC-LOGINSAFE-GATEWA

    Sheet

    Data interface
    BLUETOOTH
    ETHERNET
    Color
    BLACK

    Discharge

    PROTECTOR presentation English

    LOG iN SAFE PROTECTOR presentation in Italian

    Discharge (637.46KB)

    PROTECTOR User Manual ENG

    PROTECTOR technical manual in Italian

    Discharge (1.31MB)

    Environmental packaging label

    Environmental packaging label

    Discharge (373.09KB)
